XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

Ampliación de imagen :  XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: XDEM
Certificación: CE
Número de modelo: MDHB60
Pago y Envío Términos:
Cantidad de orden mínima: 1 juego
Precio: 10000-50000
Detalles de empaquetado: embalaje desnudo
Tiempo de entrega: 15 días hábiles
Condiciones de pago: T/T, LC/C
Capacidad de la fuente: 100 conjuntos por mes
Contacto
Descripción detallada del producto
Resaltar:

Estación de mezcla de asfalto 40TPH

,

Estación de mezcla de asfalto 10TPH

,

Estación de mezcla de asfalto de transporte de raspadores

Product Description:

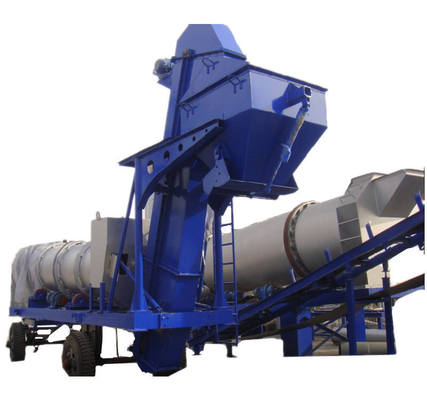

Mobile asphalt mixing plant can be categorized into two types, one is drum type(MDHB series) and the other is compulsory type (QLB series).

For drum type, we use drying drum to dry aggregates and mix them with bitumen. No ore powder will be used. It is usually used for small and low-level road construction.

For compulsory type, there is mixer to mix all the materials like stones, ore powder and bitumen. All materials will be weighed before being discharged into mixer to ensure the accuracy of the asphalt formula. Usually, it is used for high-standard road construction.

We now have mobile asphalt mixing plant with the capacity from 25tph to 100tph. Welcome to contact us for details and quotations.
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 0

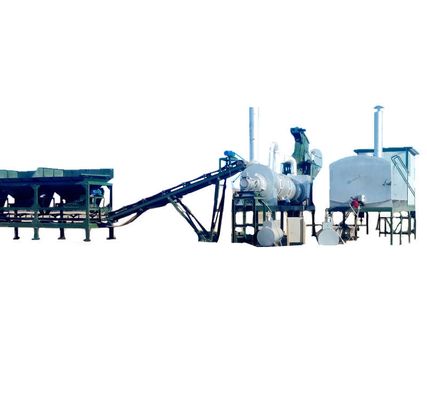

MDHB series of mobile asphalt mixing plant
Features compared with QLB series of mobile asphalt mixing plant:
1. Cost saving;
2. Labour saving;
3. It is usually used for low-level road building, like country road.
Model
MDHB20
MDHB40
MDHB60
MDHB80
MDHB100
Production Capacity (T/h)
20
40
60
80
100
Mixing Type
Continuous
Continuous
Continuous
Continuous
Continuous
Dust Remove Effect (mg/Nm3)
≤100
≤100
≤100
≤100
≤100
Fuel Consumption (kg/t) (Oil)
5.5-7
5.5-7
5.5-7
5.5-7
5.5-7
Fuel Consumption (kg/t) (Coal)
10-13
10-13
10-13
10-13
10-13
Aggregate Weighing Accuracy(%)
±1.5
±1.5
±1.5
±1.5
±1.5
Bitumen Weighing Accuracy(%)
±1
±1
±1
±1
±1
Total Power (kw)
50
75
128
165
200

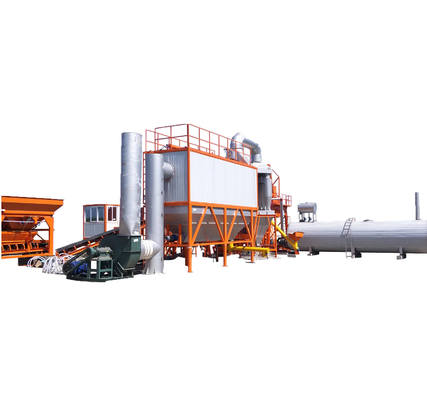

XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 1        QLB series of mobile asphalt mixing plant

Features compared with QLB series of mobile asphalt mixing plant:

1. Mixer and ore powder are used so the asphalt quality is better;
2. Bag house filter is used so the machine is more environment friendly;
3. It can be used for high-level road building, such as natioal road and expressway.
Model
QLB20
QLB40
QLB60
QLB80
QLB100
Production Capacity (T/h)
20
40
60
80
100
Mixing Type
batch type
Dust Remove Effect (mg/Nm3)
≤50
Fuel Consumption (kg/t) (Oil)
5.5-7
5.5-7
5.5-7
5.5-7
5.5-7
Fuel Consumption (kg/t) (Coal)
10-13
10-13
10-13
10-13
10-13
Aggregate Weighing Accuracy(%)
±1.5
±1.5
±1.5
±1.5
±1.5
Bitumen Weighing Accuracy(%)
±1
±1
±1
±1
±1
Total Power (kw)
50
75
128
165
200



XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 2XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 3XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 4XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 5

LB series of compulsory type of asphalt mixing plant has mixer. There are scales for all materials to ensure accuracy of the asphalt formula. Ore powder will be added to the mixture and all materials will be mixed in mixer. Usually, bag house filter is used to protect the environment. It is widely used for high-standard road like expressway, national highway etc.

Currently, we have stationary asphalt mixing plant with the capacity from 40tph to 320tph. Welcome to contact us for details and quotations
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 6
Model
LB750
LB1000
LB1200
LB1500
LB2000
Production Capacity (T/h)
60
80
100
120
160
Mixer Capacity (kg)
750
1000
1200
1500
2000
Dust Remove Effect (mg/Nm3)
≤20
≤20
≤20
≤20
≤20
Fuel Consumption (kg/t) (Oil)
5.5-7
5.5-7
5.5-7
5.5-7
5.5-7
Fuel Consumption (kg/t) (Coal)
10
10
10
10
10
Aggregate Weighing Accuracy (%)
±0.5
±0.5
±0.5
±0.5
±0.5
Filler Weighing Accuracy (%)
±0.25
±0.25
±0.25
±0.25
±0.25
Bitumen Weighing Accuracy (%)
±0.25
±0.25
±0.25
±0.25
±0.25
Our Projects:
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 7
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 8
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 9
